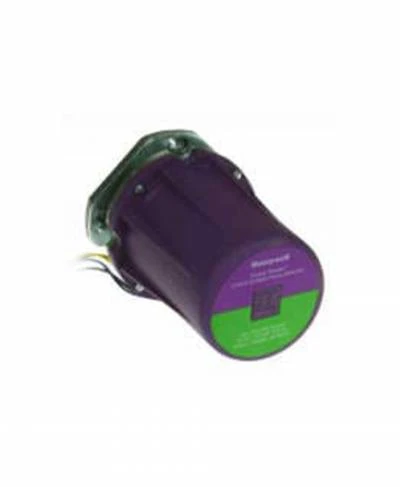

C7061A,F

- Oscillating shutter interrupts ultraviolet radiation reaching the UV sensor to provide the UV sensor tube checking function. - Can be mounted horizontally, vertically or at any angle in between. - The detector requires faceplate alignment and has integral locating reference points to assure proper operation of the shutter mechanism. - Field replaceable ultraviolet sensing tube and quartz viewing window. - Models with threaded conduit fitting and color-coded leadwires allow rapid electrical installation. - C7061A1046 5 pin Brad Harrison type (formally 41307N) mating connector not supplied nor available through Honeywell. - Two detectors can be wired in parallel to reduce nuisance shutdowns in difficult flame sighting applications. - Protective heat block built into mounting flange. - -40°F (-40°C) rated ultraviolet sensing tube is supplied. - C7061E meets NEMA 4 standards with viewing window rated to 20 psi. - C7061F has an explosion-proof housing for use in hazardous atmospheres with a viewing window rated to 100 psi. - Pipe connection (all models) 1 in. NPT, includes 1 in. to 3/4 in. bushing adapter for 3/4 in. viewing pipe mounting.)
