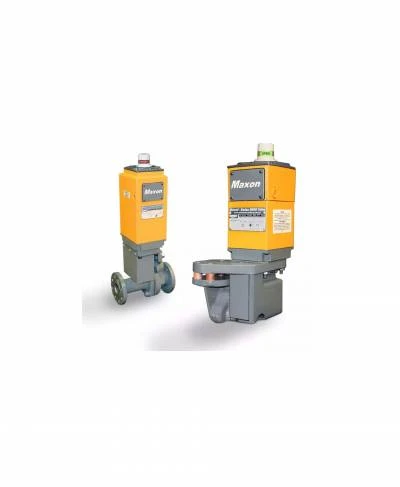

Series 8000 Air Actuated Safety Shutoff Valves for Liquid Service

- Factory Mutual (FM), CSA (6.5 C/I & 3.9) approved safety shut-off valves - Hazardous Location approved: Intrinsically Safe for Class I, Div. 1 (and ATEX Zone 2/22 when ordered with the ATEX IS solenoid); Non-Incendive for Class I, Div. 2 - Top mounted 360-degree open-shut visual position indication - Cast iron and carbon steel body assemblies with internal trim options to handle general purpose or severe fluids - Ambient temperature ranges of -40°F (-40°C) to 140°F (60°C); Fluid temperature range of -40°F (-40°C) to 550°F (288°C) - Application flexibility provided with 3/8" (DN10) through 2" (DN50) line sizes & line pressures up to 740 psig - Actuator assemblies are field-replaceable and available in 120VAC 50/60 Hz, 240VAC 50/60 Hz, and 24VDC (with low power option), rated for NEMA 4, NEMA 4X and IP65 - MAXON Series 8000 Air Actuated Valves combine a unique space-saving design with a maintenance-free body and a replaceable actuator for easy installation and smooth, trouble-free operation - The valve's quick exhaust and powerful closing spring provide valve closure in less than one second and reliable, long-life operation - Series 8000 Valve's compact design simplifies piping design and minimizes space requirements - The field-replaceable actuator provides easier maintenance and reduced downtime. The actuator can also be rotated around the valve body in 90° increments to fit your specific application requirements - A unique stem seal design eliminates packing adjustments for reduced maintenance and minimized drag on closing - The large top-mounted open-shut indicator is visible from all angles for easy proof of valve position. FM and CSA approvals for use as a fuel safety shut-off valve making easy integration with worldwide certifications
