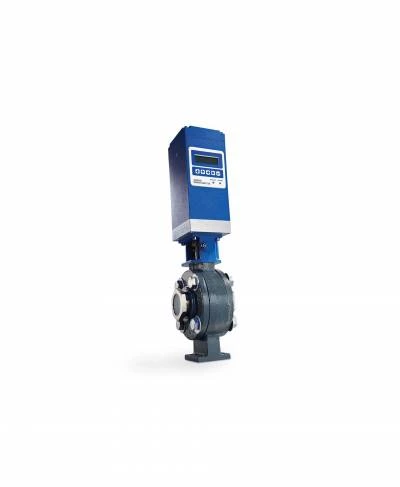

SMARTLINK DS Intelligent Control Actuator Series

- 4-20ma Input and Output – Both are independently isolated - Loss-of-Signal and F-Terminal Functions – Two, user-defined, positions for 4-20mA control applications - Precision Gear Train – Provides 0.1 degree resolution with long-life planetary gear set - Safety System Relay Feedback – Fail-safe high/low position and alarm relay drive circuitry with dual processor architecture and redundant position feedback - RS-485 Modbus Interface – Needed to configure actuator when no user display option is ordered. - Maxon PC-based configuration software and RS-485 cable required. - Diagnostics via Modbus – Alarm-Lockout, Communication, and Move (Repositioning) Diagnostic Counters; Loss-of-Motor Sync, Position Control, Position (Feedback), Temperature, and Hardware Alarms; Alarm-Lockout Event History, Position Move Histogram - Reverse Direction – User selectable clockwise or counter clockwise movement
